All bars are 7/8” OD (outside diameter)

Rise = how high the bars are from top to bottom

Width = end to end measurement

 Pull Back = how far bars come back toward rider

Center =mounting area

material: steel.

wall thickness: 2.3mm

When you measure the bar, first setup a table meets the wall, then put the bar on the table and rotate forward until the front of the bar is touching the wall.

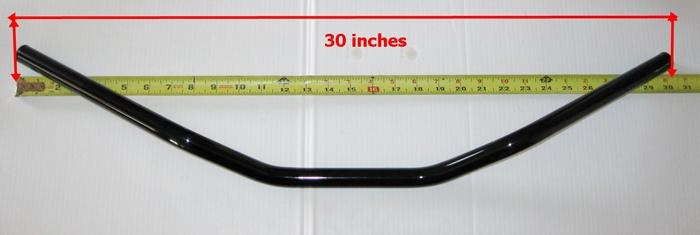

Width is from the end to end of the bar: pls see below picture, the ruler should be placed against the red arrow which is the far end of the handlebar.

Rise is the distance from the upper side of the bar where the bar rests on the table (not include the tube portion, deduct 7/8" if measure from the top of the bar to the table) to the highest point (not the bent of the handlebar, pls see the difference between pic 1 and pic 3. In pic 1, the end of the handlebar is higher than the bent, so the rise is measured from the upper side of the bar to the end of the bar; in pic 3, the bent of the handlebar is the highest point of the bar, so the rise is from upper side of the bar to the bent),

pullback is measured from the inner portion of the bar to the farthest point back.
